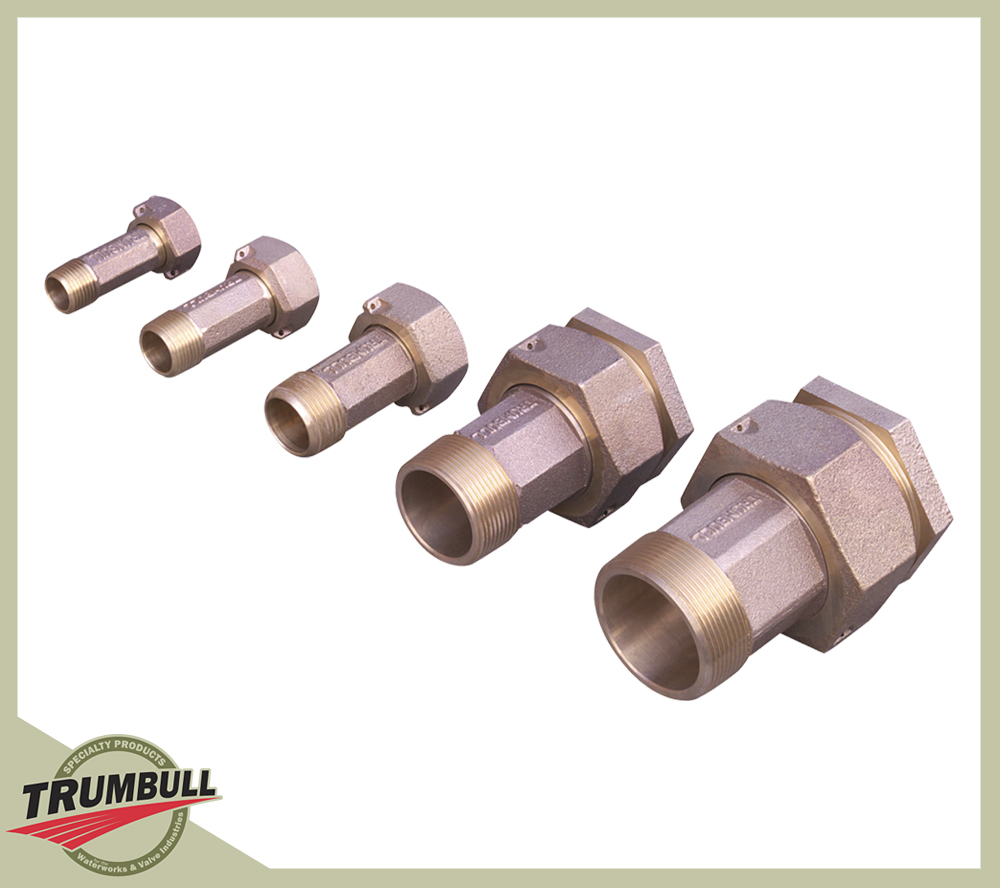

All Trumbull Meter Couplings are supplied with rubber gasket. Barrel is in contact with water and is cast brass to meet UNS C89833. Lead content is less than .25%, in compliance with the Reduction of Lead in Drinking Water Act. Swivel not does not contact water and is cast from UNS C83600.

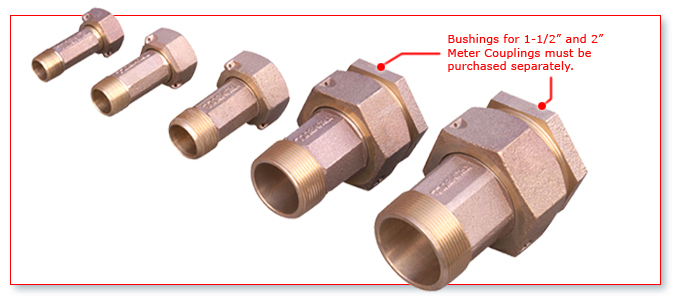

If your water meters have female threads and a thread size of either 1-1/2″ or 2″, your Meter Couplings require the addition of bushings, which are shown at the bottom of this page.

"LOW-LEAD" METER COUPLINGS

Trumbull Item No. Male Thread Fits Meter Size Lining Length Weight
368-0590 1/2" 5/8" x 3/4" and 3/4" 2-3/8" 0.44 lbs.
368-0591 1/2" 5/8" x 1/2" 2-3/8" 0.25 lbs.
368-0646 1/2" 5/8" x 3/4" and 3/4" 1-5/8" 0.40 lbs.
368-0593 3/4" 5/8" x 3/4" and 3/4" 2" 0.45 lbs.
368-0592 3/4" 5/8" x 3/4" and 3/4" 2-1/2" 0.50 lbs.
368-0595 1" 1" 2-5/8" 0.70 lbs.
368-0597 1-1/2" 1-1/2" 2-7/8" 1.85 lbs.
368-0598 2" 2" 3" 2.65 lbs.

“LOW-LEAD” BUSHINGS

Purchased separately for use with 1-1/2″ or 2″ meters with female threads, as per the illustration.

Trumbull Item No. Size Fits Coupling Weight
368-0618 1-1/2" 1-1/2" 0.85 lbs.
368-0619 2" 2" 1.20 lbs.
