T-HANDLE MAIN VALVE KEYS

Stocked in lengths 2′ through 12′. Available in other lengths on special order. 1″ Schedule 40 steel pipe shafts. Cast steel socket fits 2″ square operating nut.

Trumbull Item No. Length Weight
367-5016 2 ft. 9.15 lbs.
367-5017 3 ft. 10.70 lbs.
367-5018 4 ft. 12.10 lbs.
367-5019 5 ft. 13.35 lbs.
367-5020 6 ft. 15.30 lbs.
367-5021 7 ft. 17.10 lbs.
367-5023 8 ft. 18.80 lbs.
367-5026 10 ft. 20.00 lbs.
367-5028 12 ft. 22.00 lbs.

BUFFALO TYPE CURB BOX RODS

Made of 1/2″ square carbon steel with ductile iron end casting. Furnished with brass cotter pin. Other lengths available on special order.

Trumbull Item No. Length Weight
367-4230 30" 3.00 lbs.
367-4232 36" 3.50 lbs.

ERIE/MINNEAPOLIS TYPE CURB BOX RODS

Furnished with brass cotter pin. Other lengths available on special order.

Trumbull Item No. Length Weight
367-4084 24" 3.10 lbs.
367-4085 30" 3.20 lbs.
367-4087 36" 3.70 lbs.
367-4090 42" 4.20 lbs.
367-4092 48" 4.70 lbs.

#1302 CURB STOP WRENCHES

Designed to shut off 3/4″ through 2″ curb stops. Fits directly on tee head of curb stops. Stocked lengths are shown below; other lengths available on special order. Made of 5/8″ round carbon steel with ductile iron end casting. Click HERE for our new Lighted Curb Keys!

Trumbull Item No. Length Weight
367-4293 3 ft. 4.00 lbs.
367-4294 4 ft. 6.00 lbs.
367-5025 6 ft. 8.00 lbs.
367-4296 8 ft. 10.00 lbs.

GATE VALVE SPEED WRENCH

Ideal for operating valves with 2″ AWWA nut, either in the trench or in the yard. Allows use of both hands for extra leverage. Revolving handle allows quick opening and closing.

Trumbull Item No. Length Weight
367-9981 18" 6.20 lbs.

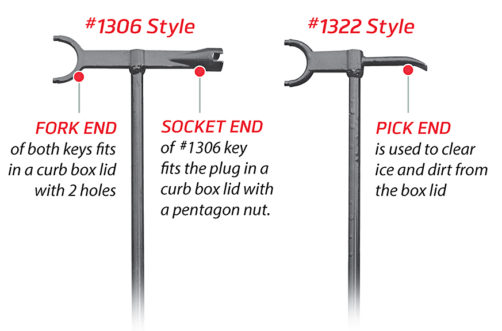

#1306 & #1322 CURB BOX KEYS

For Erie & Minneapolis Type Boxes. Made of 5/8″ carbon steel. Slotted end used on Erie & Minneapolis style rods, as well as fitting inside a curb box with 1″ pipe upper section.

curb-box-keys_2d
#1306 Item No. #1322 Item No. Length Weight
367-4277 spec/ord 2 ft. 5.00 lbs.
367-4278 367-5278 3 ft. 7.00 lbs.
367-4280 367-5280 4 ft. 9.00 lbs.
367-4276 spec/ord 5 ft. 11.00 lbs.
367-4275 spec/ord 6 ft. 13.00 lbs.
367-4274 spec/ord 7 ft. 15.00 lbs.

#1305 & #1321 COMBINATION CURB BOX KEYS

For Buffalo Type Boxes. Made of 5/8″ round carbon steel with ductile iron combination casting. Click HERE for our new Lighted Combination Curb Keys!

NOT for use with 1" Erie Style Boxes.
#1305 Item No. #1321 Item No. Length Weight
367-4295 367-5295 1 ft. 3.00 lbs.
367-4291 367-5291 3 ft. 5.00 lbs.
367-4292 367-5290 4 ft. 6.00 lbs.
367-4297 367-5297 6 ft. 8.00 lbs.

NOTE: For all Key lengths not shown on this page, please inquire.
