Superior design can pass a 50,000 # proof load test per AASHTO M-306, H-25, yet weighs only one-third of a comparable cast iron frame and lid.
Unique EPDM seal design prevents infiltration through bolt holes. Four Xylan coated stainless bolts compress the lid to the seal. Underside of lid allows for attachment of flow monitoring devices. The cellular and radio signal transparency of this cover allows for easy transmission of the collected flow data.
Due to its resistance to H2S, composite material is a great solution for manholes where H2S (Hydrogen Sulfide) gas has caused deterioration to traditional cast iron manhole covers.
Optional custom lettering available.

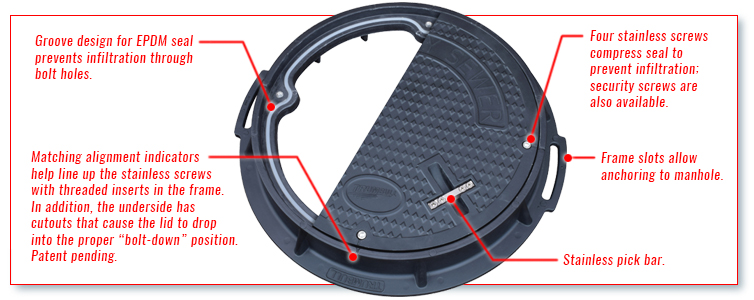

BOLT-DOWN FASTENING / MATCHING ALIGNMENT INDICATORS
All our Frame and Cover Assemblies have threaded inserts in the frame to accept stainless steel screws.
Matching alignment indicators help line up the stainless screws with threaded inserts in the frame. Patent Pending! In addition, the underside has cutouts that cause the lid to drop into the proper “bolt-down” position.
"WATER METER" COMPOSITE FRAME & COVER ASSEMBLIES
| Clear Opening | Lid O.D. | Rim Thickness | Fits Frame Types | Antenna Mounting | CBORE Dim. | Worm Gear | Trumbull Item No. | Weight |
|---|---|---|---|---|---|---|---|---|
| 21-1/2” ID | 23-3/4” | 1” | Trumbull Frame Only 367-5468 |
(SMC) Retainer Bracket |
---- | Bolt Down | 367-5790 | 66.1 lbs. Lid & Frame |
| 30” ID | 32” | 1-1/4” | Trumbull Frame Only 367-5794 |
(SMC) Retainer Bracket |
---- | Bolt Down | 367-5793 | 129.0 lbs. Lid & Frame |
"SANITARY SEWER" COMPOSITE FRAME & COVER ASSEMBLIES
| Clear Opening | Lid O.D. | Rim Thickness | Fits Frame Types | Antenna Mounting | CBORE Dim. | Worm Gear | Trumbull Item No. | Weight |
|---|---|---|---|---|---|---|---|---|
| 21-1/2” ID | 23-3/4” | 1” | Trumbull Frame Only 367-5468 |
Retainer Bracket for flow monitoring |
---- | Bolt Down | 367-5789 | 66.1 lbs. Lid & Frame |
| 30” ID | 32” | 1-1/4” | Trumbull Frame Only 367-5794 |
Retainer Bracket for flow monitoring |
---- | Bolt Down | 367-5792 | 129.0 lbs. Lid & Frame |
