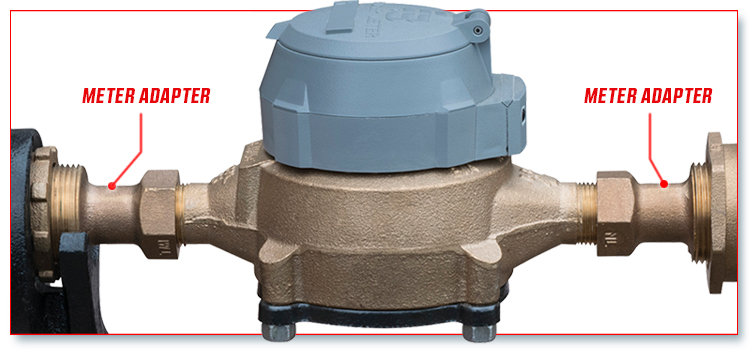

When changing meter sizes in an existing setting, use Trumbull Meter Adapters to make up the difference in length and thread size. Our Meter Adapters are cast from UNS C89833 brass and have been certified by UL for compliance with NSF/ANSI 61 and NSF/ANSI 372, per the U.S. Safe Drinking Water Act.

METER ADAPTERS

Trumbull Item No. Weight Ford No. Meter Size of ORIGINAL Meter Laying Length of ORIGINAL Meter Meter Size of NEW Meter Laying Length of NEW Meter * Quantity Required
368 0642 0.4 lbs. A13 3/4" 9" 5/8" 7-1/2" 2
368 0643 0.4 lbs. A14 1" 10-3/4" 5/8" 7-1/2" 2
368 0639 0.4 lbs. A23 3/4" 9" 5/8" x 3/4" 7-1/2" 1
368 0641 0.6 lbs. A24 1" 10-3/4" 5/8" x 3/4" & 3/4" ** 7-1/2" 2
368 0644 0.4 lbs. A34 1" 10-3/4" 3/4" 7-1/2" 2
368 0640 0.7 lbs. A44 1" 10-3/4" 3/4" x 1" 9" 1
368 1022 3.2 lbs. A47 2" Flange 17" 1" 10-3/4" 2

* Meter Adapters are provided with a hard fiber gasket to maintain existing laying lengths, however, for polymer meters with pressed on metal threads, a soft rubber gasket is required; please specify on order. Adapter #379-1022 is provided with one 2″ rubber flange gasket and one 1″ rubber gasket.

** 3/4″ meters have been made with 7-1/2″ and 9″ laying lengths; Adapter #368-0641 is designed for 3/4″ meters with 7-1/2″ laying length.
