Rite-Hite Adapters

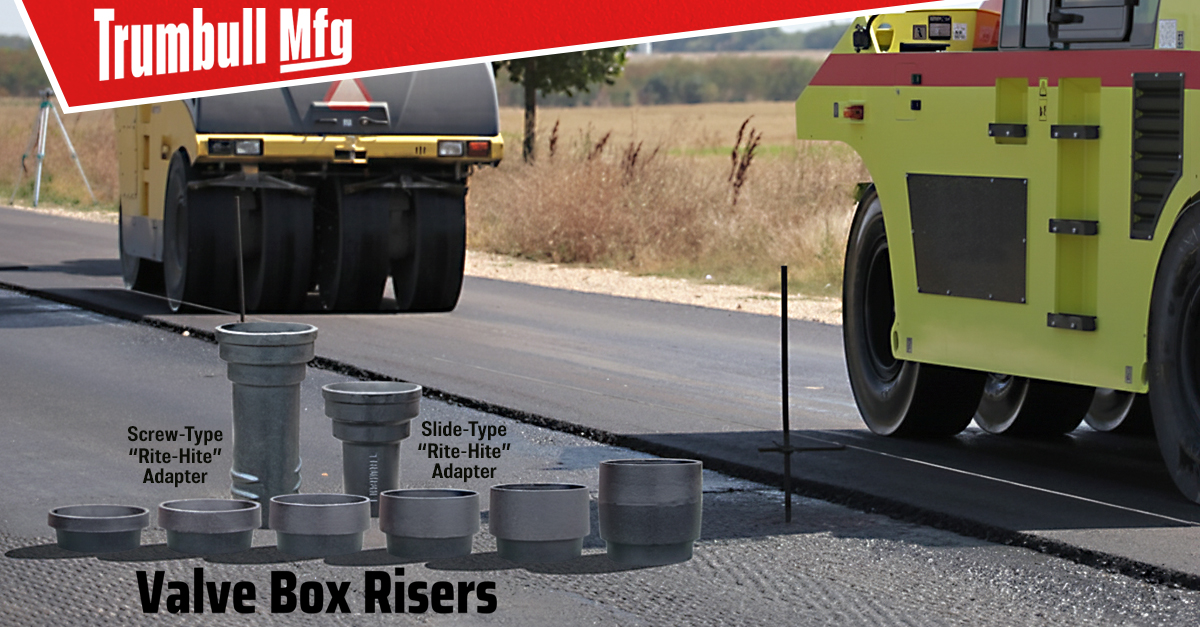

The “RITE-HITE” adapters provide a method for adjusting valve boxes to pavement level.

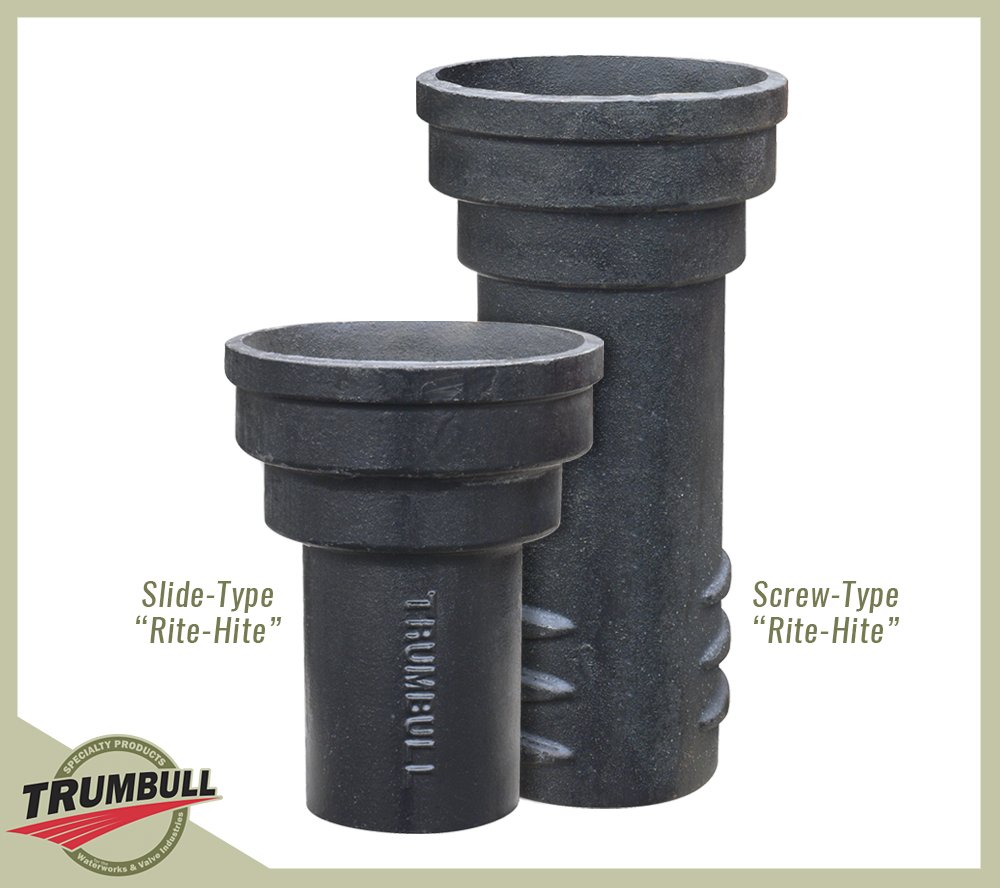

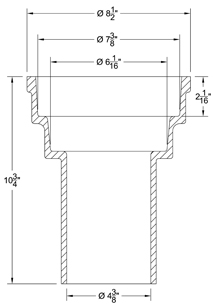

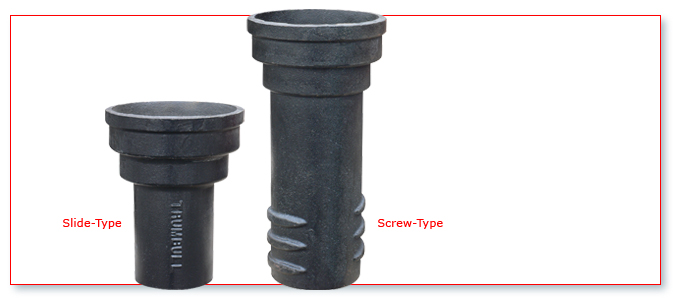

SLIDE-TYPE “RITE-HITE” ADAPTER

Accepts standard valve box covers, as made by Bingham & Taylor, Central Foundry, Tyler, etc.

Trumbull Item No. Adjustment Range Weight
367-5050 2-1/2" - 8" 16.00 lbs.

Usage Recommendations for our SLIDE-TYPE Adapters:

  • If the existing valve box is too low, place the “RITE-HITE” inside the existing box, pour cement mortar around it and push down until the “RITE-HITE” is flush with the pavement surface.
  • If the existing valve box is too high, break off the top of the valve box and insert the “RITE-HITE”. Then pour stiff cement mortar around it and push down until the “RITE-HITE” is flush with the pavement surface.

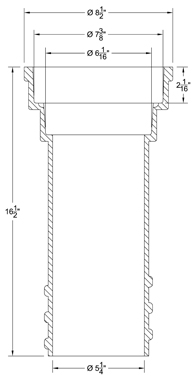

SCREW-TYPE “RITE-HITE” ADAPTER

Paving Adapter No. T-69

This type adapter screws into the top section of the valve box. They accept standard valve box covers, as made by Bingham & Taylor, Central Foundry, Tyler, etc.

Trumbull Item No. Adjustment Range Weight
367-5060 2-1/2" - 8" 25.00 lbs.
