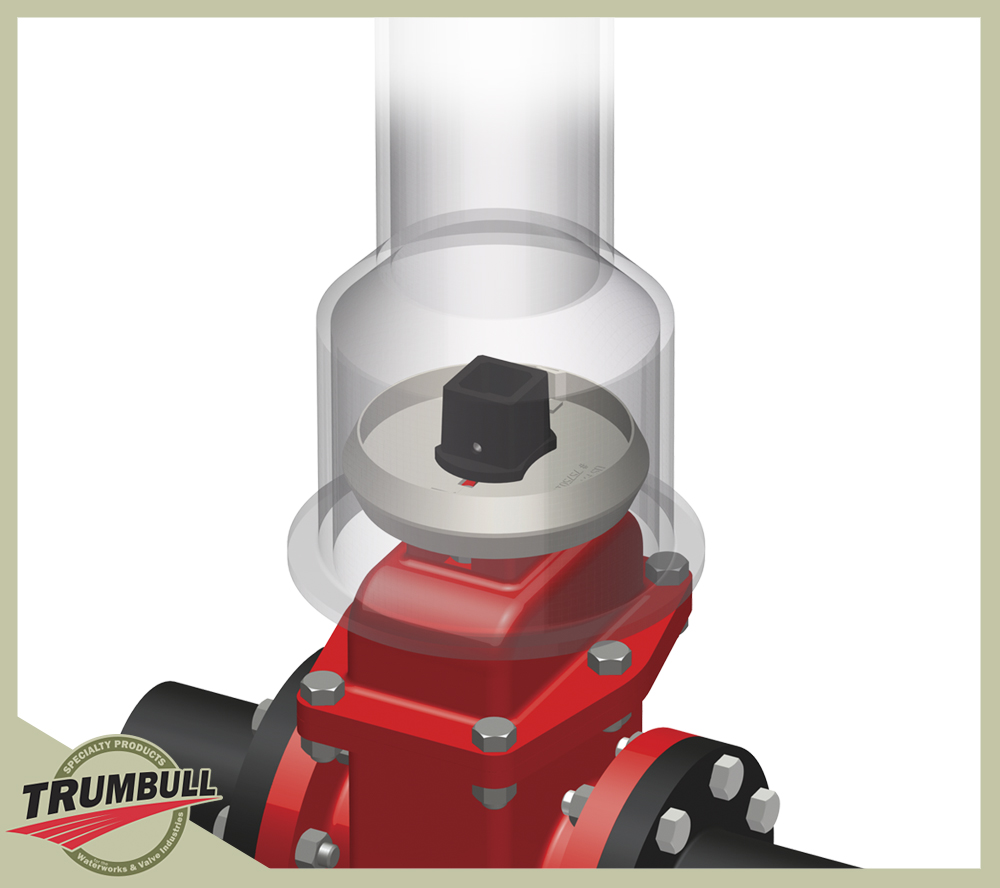

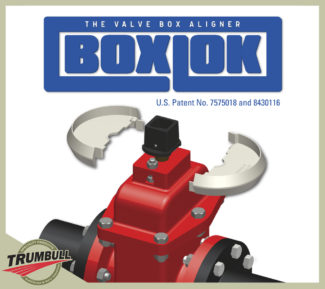

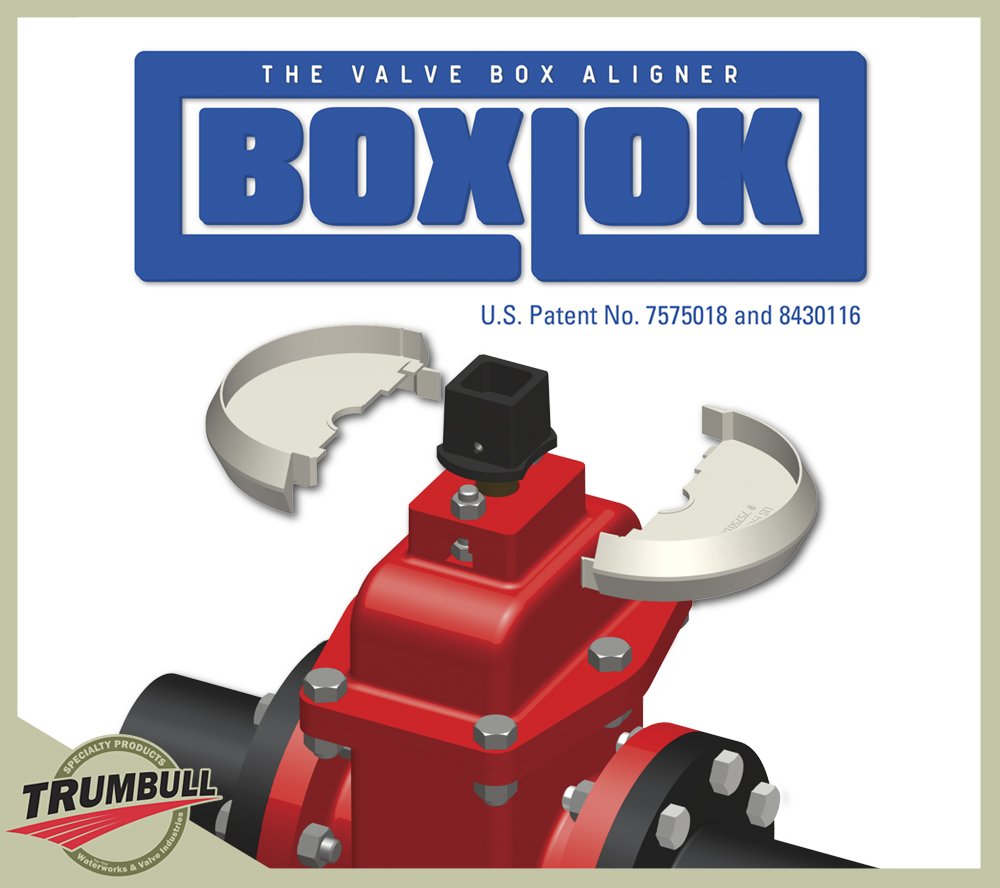

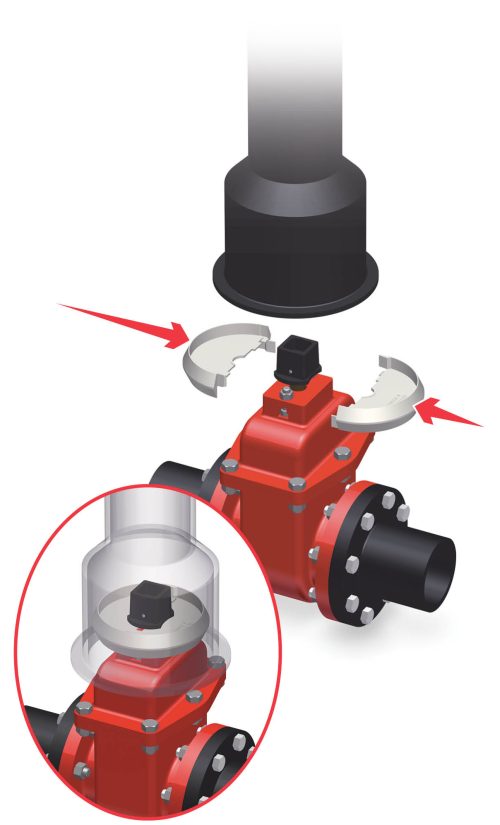

- Eliminates shifting of Valve Box during backfill.
- Designed for use on all AWWA resilient wedge gate valves.
- Used with 5-1/4″ 2-piece valve boxes.
- Avoids costly excavations when valve box shifts, preventing valve key from engaging the 2″ square nut.

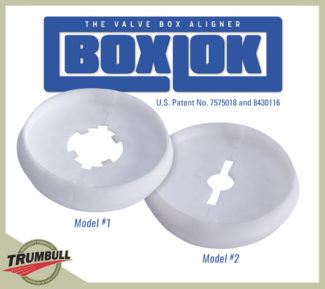

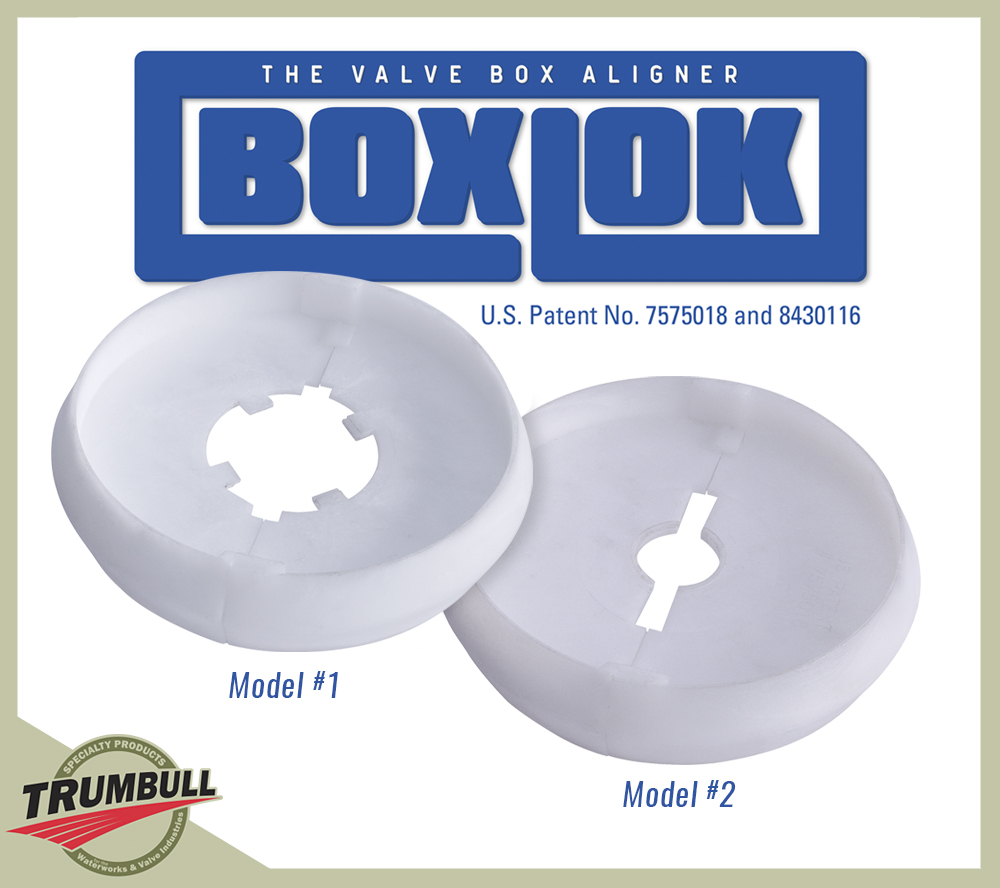

VALVE BOX ALIGNMENT DEVICES
| Model | Trumbull Item No. | Weight |
|---|---|---|
| #1 | 367-4850 | 0.30 lbs. |
| #2 | 367-4851 | 0.40 lbs |
Ordering Instructions
1. Quantity required
2. Order model required, using this chart
| Valve Size | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Valve Manufacturer | 2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 30" | 36" | 42" | 48" |
| AFC | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| AVK | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Clow | 2 | 2 | 2 | 2 | 2 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 |
| East Jordan | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| J&S Valve | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Kennedy | 2 | 2 | 2 | 2 | 2 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 |
| M & H | 2 | 2 | 2 | 2 | 2 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 | K1 |
| Mueller | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| US Pipe | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
