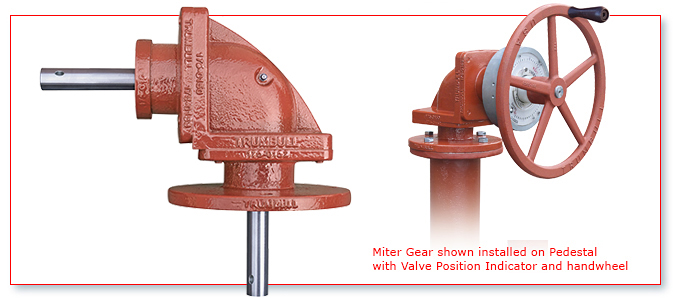

Heavy-Duty, Enclosed Gear Assemblies
TRUMBULL MITER GEARS are designed to fulfill the following primary functions:
• To be used as an add-on component to Trumbull Floorstands or Pedestals
• To be mounted directly to valves where a 90 degree change in the input shaft direction is required
• For use as a stand-alone component in a valve operating assembly with rotating elements, such as extension stems, where the installed conditions require one or more 90 degree changes of direction
Housings are cast ductile iron 65-45-12 with a Tnemec N140-1211 two-part epoxy, NSF-61 certified exterior coating. The gears are case hardened steel; the gear shafts and fasteners are 316 stainless steel.
Trumbull Miter Gear Assemblies are provided standard with a recessed grease fitting for easy maintenance and Buna-N O-ring seals on each end adapter.
Trumbull Miter Gears have a recommended maximum torque of 300 ft-lb (406 N-m). For applications with higher torque requirements, please consult Trumbull.
Gear Ratio = 1:1, Input/Output Shaft Diameter = 0.984″.
3 Standard End Adapters = 6 Possible Combinations!
| End Configurations | Model# | Weight | Typical Usage for Each End Adapter |
|---|---|---|---|
| 8" Round x 3-1/2" Round | MG1A | 39.00 lbs. | 8" Round - mates to our Floorstands |
| 8" Round x 3-1/2" Round | MG1A | MG1A | 3-1/2" Round - for use with handwheel or nut operators |
| 8" Round x 4-1/4" Square | MG1B | 42.00 lbs. | 8" Round - mates to our Floorstands |
| 8" Round x 4-1/4" Square | MG1B | 42.00 lbs. | 4-1/4" Square - adapts for guide, bracket & motor mountings |
| 8" Round x 8" Round | MG1C | 46.00 lbs. | Both 8" Round ends mate to our Floorstands & other fabrications such as torque tubes |
| 4-1/4" Square x 3-1/2" Round | MG2A | 37.00 lbs. | 4-1/4" Square - adapts for guide, bracket & motor mountings |
| 4-1/4" Square x 3-1/2" Round | MG2A | 37.00 lbs. | 3-1/2" Round - for use with handwheel or nut operators |
| 4-1/4" Square x 4-1/4" Square | MG2B | 35.00 lbs. | Both 4-1/4" Square ends easily adapt for guide, bracket & motor mountings |
| 3-1/2" Round x 3-1/2" Round | MG3A | 32.00 lbs. | Both 3-1/2" Round ends for use with either extension stem assemblies, handwheel, or nut operators |
