SEALED INDICATOR SLOT

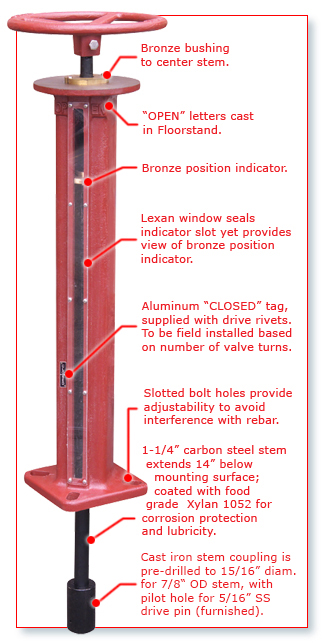

TRUMBULL 36″ DUCTILE IRON INDICATING FLOORSTANDS are designed for installation in treatment plants and pump stations to allow operation of valves at a lower elevation. Set screw secures handwheel to stem. Flange can be machined to facilitate mounting of actuator, if required (also available with gear operators). Stocked for “open left” valves; also available for “open right” valves. Standard stem threading allows up to 196 turns; optional threading allows up to 784 turns (for stems requiring more than 448 turns, stainless stems will be furnished). Stainless drive pin supplied with assembly. Floorstands also available in Cast Stainless Steel. Click HERE for PDF of custom Floorstand options.

Ordering Instructions

  1. Quantity required
  2. Floorstand item number: 367-2421
  3. D. of extension stem being used, for drilling of connecting couplings
  4. Wall Bracket, if required
    1. Ductile iron item number:367-2451
    2. Stainless steel item number: 367-2461
