Used to Operate Overhead Valves from the Floor

Sprocket-Type, for use with Single Loop Cut Chain

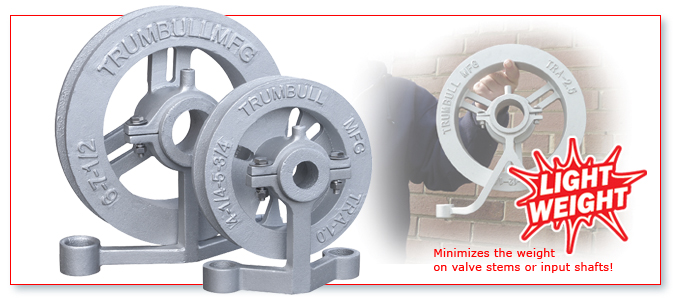

ALUMINUM CHAINWHEELS allow operation of valves, actuators, or gear boxes in high, hard-to-reach locations by means of a slight pull on the chain. The light weight of aluminum Chainwheels is desirable to minimize the weight on the stems.This series of chainwheels is similar to our Ductile Iron Sprocket-type Chainwheels, in terms of chain type and handwheel ranges.

Universal design allows Chainwheel to be clamped to handwheel, or pinned directly to stem.

Furnished with stainless steel attachment hardware for clamping to handwheel. When Chainwheel is to be pinned to stem, “Star Adapters” are available (click HERE for PDF information sheet). Adapter is pre-drilled with pin hole, and supplied with a stainless steel pin for customer mounting to the stem.

Aluminum Chainwheels are provided with a protective coating.

To prevent serious injury, we recommend the use of our Secondary Safety Restraint System. All Trumbull Chainwheels are furnished with a threaded boss for the addition of our Safety Restraint System.

Ductile Iron and Aluminum Chainwheels are sprocket-type, using single loop cut chain. See also our Carbon Steel & Stainless Steel Pocket Chainwheels that use smooth welded link machine chain.

When ordering, indicate the Chainwheel and chain size numbers and the number of feet of chain required. Chain is provided in continuous lengths and easily cut in the field to exact length needed. Closing the loop is simple with Connecting Links.

ALUMINUM CHAINWHEELS

Size No. CHAINWHEEL Item No. Diameter Boxed Weight Handwheel OD Range Chainwheel will Fit Chain Size
TRA-0.0 367-2020 4" 1.05 lbs. 2" to 4" #2
TRA-1.0 367-2021 6" 2.65 lbs. 4-1/4" to 5-3/4" 1/0
TRA-1.5 367-2022 7-1/2" 4.05 lbs. 6" to 7-1/2" 1/0
TRA-2.0 367-2023 9" 5.30 lbs. 7-3/4" to 9" 1/0
TRA-2.5 367-2024 12-1/2" 7.90 lbs. 9-1/4" to 12-1/2" 4/0
TRA-3.0 367-2025 15-1/2" 10.40 lbs. 12-3/4" to 15-1/2" 4/0
TRA-3.5 367-2026 19" 13.30 lbs. 15-3/4" to 19" 4/0

CHAIN FOR ALUMINUM CHAINWHEELS

Size No. Chain Size GALVANIZED Item No. STAINLESS Item No. Chain Length Required
TR-0.0 #2 172-1650 ---- 2X drop plus 1 ft.
TR-1.0 1/0 367-1894 367-1897 2X drop plus 1 ft.
TR-1.5 1/0 367-1894 367-1897 2X drop plus 1 ft.
TR-2.0 1/0 367-1894 367-1897 2X drop plus 1-1/2 ft.
TR-2.5 4/0 367-1895 367-1898 2X drop plus 1-1/2 ft.
TR-3.0 4/0 367-1895 367-1898 2X drop plus 2 ft.
TR-3.5 4/0 367-1895 367-1898 2X drop plus 2-1/2 ft.

TR-SERIES CONNECTING LINKS

Chain Size
GALVANIZED Item No.
316 STAINLESS Item No.
1/0
367-1994
367-1997
4/0
367-1995
367-1998
5/0
367-1996
----
