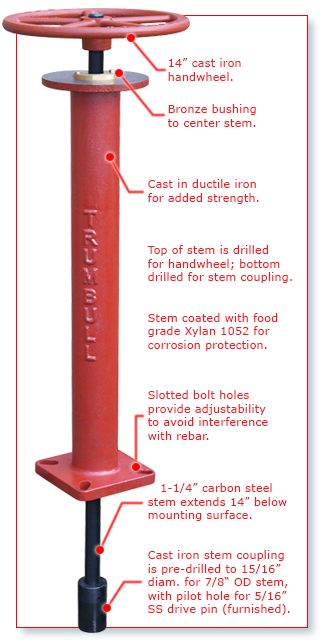

36″ Ductile Non-Indicating Floorstand

TRUMBULL 36″ DUCTILE IRON NON-INDICATING FLOORSTANDS are designed for installation in treatment plants and pump stations to allow operation of valves at a lower elevation. Non-Indicating Floorstands can be adapted for various custom requirements such as:

  • Trumbull Valve Position Indicators; 57, 275 or 870 turns (mounted to top flange, with adapter)
  • Adapter flange for actuator mounting
  • Top flange drilled for customer-supplied actuator
  • Gear operators

Click HERE for PDF of custom Floorstand options.

Ordering Instructions

  1. Quantity required
  2. Floorstand item number:
    1. 367-2417 (pedestal only, more info here)
    2. 367-2414 (pedestal, stem, handwheel & coupling)
  3. If internal stem is required, state:
    1. O.D. of extension stem being used, for drilling of  connecting stem
    2. Carbon steel or stainless steel stem
  4. Wall Bracket, if required
    1. Ductile iron item number: 367-2451
    2. Stainless steel item number: 367-2461

Pedestals, which have a wide range of uses, are available for separate purchase. Floorstands also available in indicating styles in ductile iron and cast stainless steel.

Downloads

Catalog Page

Drawing

Spec Sheet

Installation with Position Indicator
