Certified to NSF-61 & NSF-372 in U.S.A. & Canada

TRUMBULL MUD VALVES are designed primarily for use in settling tanks of water and wastewater treatment plants. They are for low pressure applications only; consult Trumbull for special requirements. Their intended use is to drain tanks for maintenance or cleaning.

Due to the corrosive applications in which Mud Valves are used, the yoke, flange, guides and gate are cast from Type 316 stainless steel. The one-piece, Type 316 stem has a permanently bonded coating to protect against galling for a lifetime of maintenance-free operation. Cast components eliminate corrosion problems frequently caused when stainless steel is welded. Castings are passivated after machining, per ASTM A-967. Heavy-duty design incorporates generous wall thicknesses and stem diameters for maximum strength and corrosion protection. Seat is SBR rubber for positive shutoff. Mechanically retained seat is field-replaceable. Fasteners are Type 316 stainless.

Valve position indicators are recommended with mud valves, to provide a visual indication of the valve’s position. See position indicator installed in floor box HERE or position indicator installed on a wall bracket HERE.

Nuts, bolts and gaskets for mounting to floor pipe are NOT furnished but can be ordered separately.

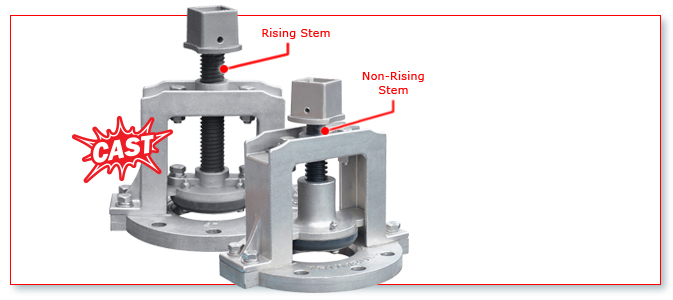

NON-RISING STEM

Size DOMESTIC Item No. NON-DOMESTIC Item No. Weight
3" 1367-1349 367-1453 19.50 lbs.
4" 1367-1350 367-1454 24.50 lbs.
6" 1367-1351 367-1455 33.50 lbs.
8" 1367-1352 367-1456 48.00 lbs.
10" 1367-1353 367-1457 65.00 lbs.
12" 1367-1354 367-1458 88.00 lbs.
14" 🔴 1367-1355 367-1459 125.00 lbs.
16" 🔴 1367-1356 367-1460 142.00 lbs.
18" 🔴 1367-1357 367-1461 186.00 lbs.
20" 🔴 1367-1358 367-1462 206.00 lbs.
24" 🔴 1367-1359 367-1463 230.00 lbs.

RISING STEM

Size DOMESTIC Item No. NON-DOMESTIC Item No. Weight
3" 🔴 1367-1369 367-1469 19.50 lbs.
4" 🔴 1367-1370 367-1470 24.50 lbs.
6" 🔴 1367-1371 367-1472 33.50 lbs.
8" 🔴 1367-1372 367-1474 48.00 lbs.
10" 🔴 1367-1373 367-1480 65.00 lbs.
12" 🔴 1367-1374 367-1481 88.00 lbs.
14"
🔴 Consult Trumbull for Availability
125.00 lbs.
16"
🔴 Consult Trumbull for Availability
142.00 lbs.
18"
🔴 Consult Trumbull for Availability
186.00 lbs.
20"
🔴 Consult Trumbull for Availability
206.00 lbs.
24"
🔴 Consult Trumbull for Availability
230.00 lbs.

🔴 = Consult Trumbull for availability

Mud Valves are also available in sliding stem version with bench stand operator. In addition Mud Valve can be adapted for pneumatic cylinder actuator. Click HERE for PDF illustrations. They can also be used with our Universal Joints shown HERE.
